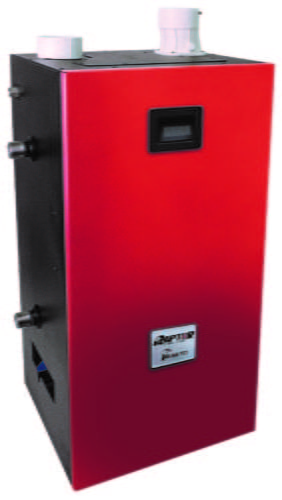

Raptor-X

Description

The all new Raptor-X with world class fire tube design is a new addition to our boiler line.

This commercial-grade, gas-fired condensing boiler is a standout in its class, featuring a 10:1 turndown ratio and 95% AFUE rating. Built on world-class engineering, the stainless steel Raptor-X offers home heating and optional domestic hot water when installed with a Mega-Store II indirect.

The innovative control with user-friendly touch screen display lends the Raptor-X exceptional ease of set up and superior serviceability.

With two models to choose from, ranging from 320 to 399 MBH, the Raptor-X can be floor or wall-mounted and is an excellent choice for commercial or residential buildings

Download Brochure

Velocity_RaptorX_Literature-Nov-17

Product Brief

Type:	Residential
Heat Exchanger:	Stainless Steel
Fuel:	Natural Gas or LPG
Input:	320 – 399 MBH
Efficiency (AFUE)	95%
Venting:	Direct Vent
Ignition:	Direct Spark
Trim:	Water
Domestic Water:	N/A
Burner:	Modulating with 10:1 turndown ratio
Configuration:	Packaged
Notes:	Outdoor Reset with included sensor Easy access control panel: – Split high and low voltage connection boards with fuse protection – LWCO ready – Sola Control system

Product Ratings

MODEL NUMBER	AFUE %	INPUT (MBH) MIN-MAX	HEATING CAPACITY (MBH)	NET AHRI (MBH)	MAWP (PSI)	APPROX. SHIPPING WEIGHT (LBS)

RPTR320HB	95.0	32-320	304	264	80	270
RPTR399HB	95.0	39.9-399	379	330	80	275

	The Net Water Ratings are based on a piping and pickup allowance of 1.15. The manufacturer should be consulted before selecting a boiler for installations having unusual piping and pickup requirements, such as intermittent system operation, extensive piping systems, etc. Refer to manual for system vent length derates. The Raptor X has special venting and clearance requirements. Consult the installation manual or the factory Refer to manual for derates based on system vent length and altitude.
