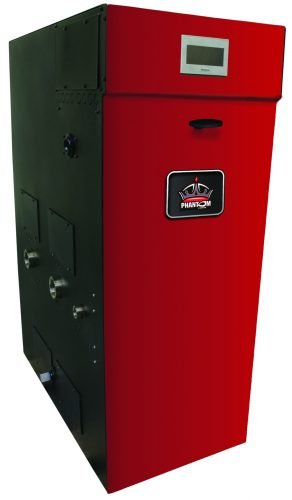

Phantom-X “C” 399C-800C

Description

The Phantom-X “C” Series is a commercial stainless-steel, water tube high efficiency, condensing, gas fired hot water boiler. The Phantom-X “C” Series is available for use with natural gas or LP gas and in 5 sizes, from 399MBH to 800MBH input.

The Phantom-X “C” Series features a modulating burner with a 5:1 turndown ratio and a Thermal Efficiency rating of up to 97.0%. Standard features of the Phantom-X “C” Series control include domestic water priority with priority protection, warm weather shutdown, freeze protection and pump exercise. The Phantom-X “C” Series control allows for multiple boiler installations with lead/lag for up to 8 boilers.

The Phantom-X “C” Series also offers multiple venting options, and with their stackable design feature they offer floor-space savings for those small mechanical room applications.

Download Brochure

CVB-PhantomX-C-Series-399-800-Lit-Sht-nc-PF-June-19

Product Brief

Type:	Residential/Commercial
Heat Exchanger:	Stainless Steel Water Tube
Fuel:	Natural Gas or LPG
Input:	399 – 800 MBH
Efficiency (AFUE)	94.1% to 97%
Venting:	Direct Vent
Ignition:	Direct Spark
Trim:	Water
Domestic Water:	N/A
Burner:	Modulating with 5:1 turndown ratio
Configuration:	Packaged
Notes:	Outdoor reset with included sensor Multiple Venting options Multiple boiler lead/lag – up to 8 boilers
