Description
The SVF boiler streamlines set-up and installation, saving time, labor and money. Guarding against wear and tear with its corrosion resistant and durable materials, Weil-McLain’s new Stainless Vertical Firetube boiler delivers energy efficiency and reliability. A leading-edge addition to our commercial boiler portfolio, it meets all standard bid specs for new construction.
Features:
- Industry-leading thermal efficiency up to 96.8%
- Vertical, stainless steel heat exchanger

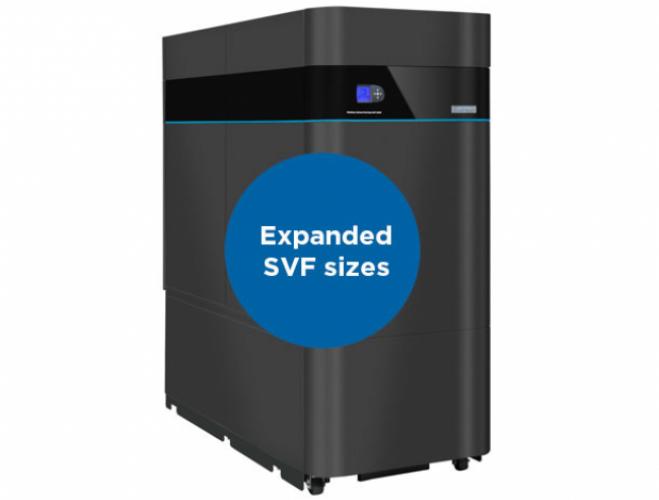

- Available in 4 sizes: 1500, 2000, 2500 & 3000 MBH
- Water boiler with natural gas and propane fuel options
- 160 psi working pressure
- Up to 10:1 turn down ratio

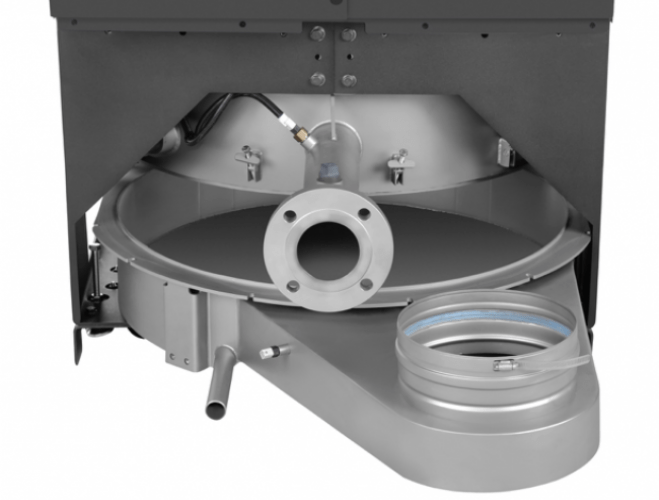

- Easy access, replaceable stainless steel condensate tray
- Integrated roller casters and leveling legs for contractor-friendly installation
- Standard “door-fit” design
- Zero clearance, side-by-side installation capable

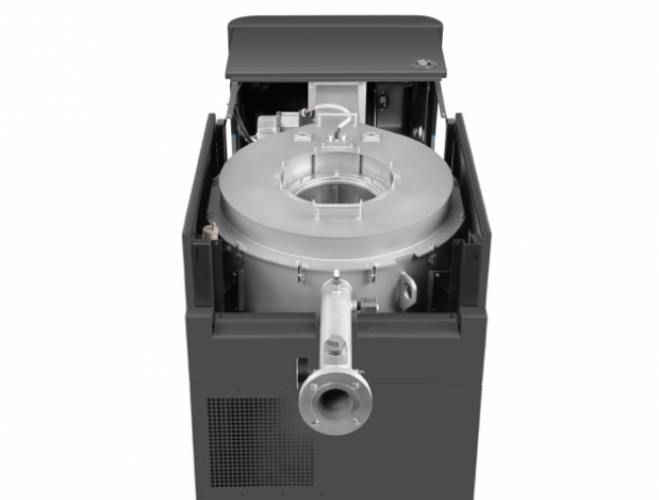

- Hinged cover plate for quick access to burner and firetubes for time-saving preventive maintenance
- Advanced UnityTM control system with built-in set-up wizard (70–3000 MBH compatible)
- Weil-McLain built-to-last reliability and longevity
Technical Data
| Model | Max Input (MBH) | Gross Output (MBH) | Net AHRI Rating (MBH) | Thermal Efficiency | Max Working Pressure | Turn Down Ratio | Supply / Return Water Connections | Gas Connection Size | Air Intake/Vent Diameter | Length (in.) | Width (in.) | Height (in.) | Approx. Shipping Weight (Lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SVF 1500 | 1,500 | 1,448 | 1,259 | 96.5% | 160 | 7.5:1 | 3″ flange | 2″ FNPT | 8″ | 84″ | 35″ | 79″ | 2,550 |
| SVF 2000 | 1,999 | 1,923 | 1,672 | 96.2% | 160 | 10:1 | 3″ flange | 2″ FNPT | 8″ | 84″ | 35″ | 79″ | 2,550 |
| SVF 2500 | 2,499 | 2,419 | 2,104 | 96.8% | 160 | 8.3:1 | 3″ flange | 2″ FNPT | 10″ | 84″ | 35″ | 79″ | 2,850 |
| SVF 3000 | 3000 | 2,874 | 2,499 | – | 160 | 10:1 | 3″ flange | 2″ FNPT | 10″ | 84″ | 35″ | 79″ | 2,850 |
Product Video
Downloads
Brochures and Sales Collateral
Weil-McLain_SVF-1500-3000-brochure_WM2005_web
Weil-McLain_SVF_1500-3000-Flyer_WM2003-web
Drawings
Weil-McLain_SVF-1500-2000_LineDrawings-WM1912-web
Weil-McLain_SVF-2500-3000_LineDrawings-WM1912-web
Manuals
Weil-McLain_SVF_1500-3000_Common_Venting_Application_Guide_550142973_0719-web
SVF 1500-3000 Boiler Manual 550-100-250_0420 Web (English)
SVF 1500-3000 Boiler Manual 550-100-253_0420 Web (French)
SVF 1500-3000 Advanced Boiler Manual 550-100-252_0520 Web (English)
Weil-McLain_SVF_1500-3000_UserInformationManual_FRENCH_550100254_0819FR-web
Weil-McLain_SVF_1500-3000_UserInformationManual_550100251_0819-web
Parts List
Weil-McLain_SVF-1500-3000-SparePartsFlyer_WM1906-web_0
Technical Documents
Weil-McLain_SVF_1500-3000_ProtoNodeSupplement-CompletePointListing_WM1908-web
Weil-McLain_SVF_1500-2000_Seismic_Analysis_WM1908-web
Weil-McLain_SVF-1500-3000-TechDataSheet_WM2002-web
Weil-McLain_SVF-3000_GuideSpec_WM1906
Weil-McLain_SVF-2000_GuideSpec_WM1906
Weil-McLain_SVF-2500_GuideSpec_WM1906
Weil-McLain_SVF-1500_GuideSpec_WM1906
Weil-McLain_SVF_2500-3000_Seismic_Analysis_WM1908-web
Weil-McLain_SVF-1500-3000_SubmittalSheet_WM2003-web
Weil-McLain-Evergreen-SVF-SlimFit-ProtoNodeStartUpGuide-Oct2020_0
