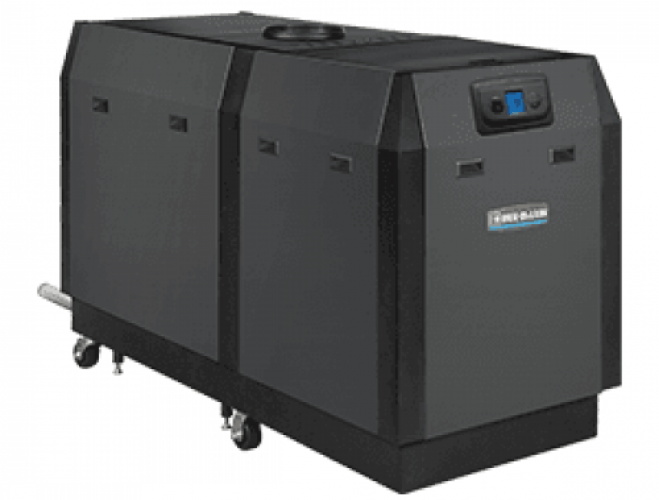

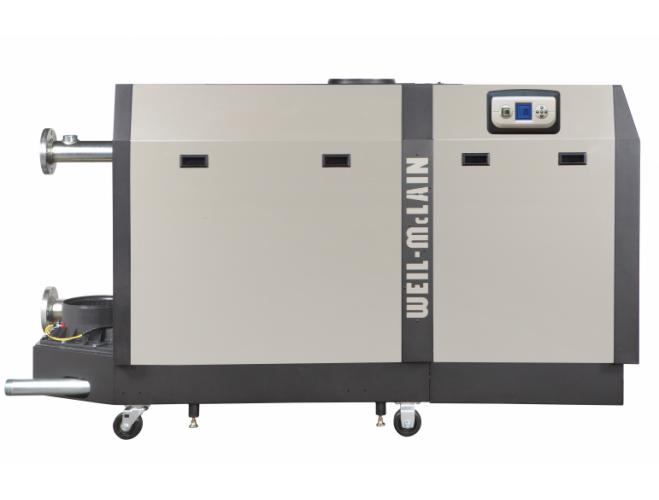

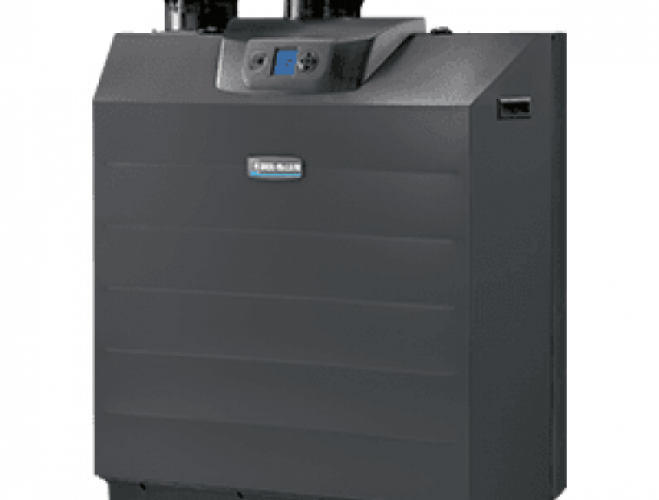

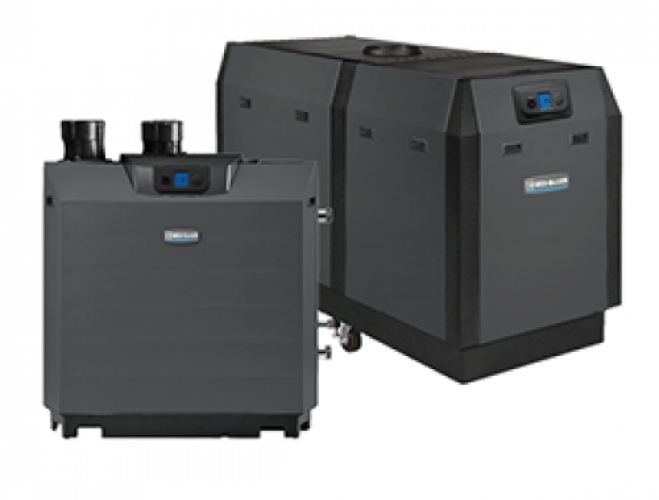

SlimFit Commercial Condensing Gas Boiler

Description

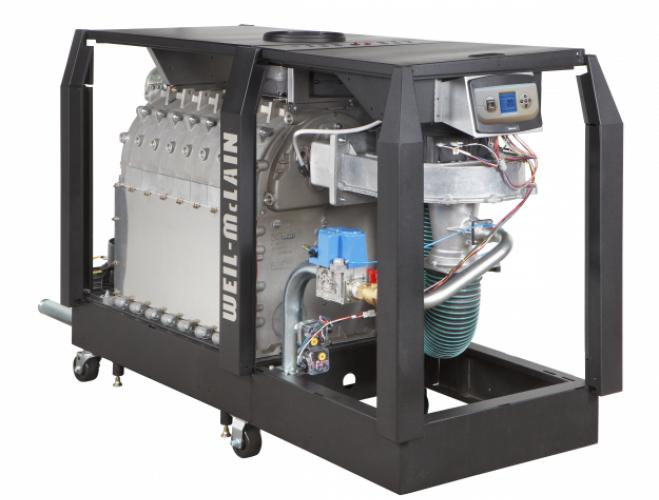

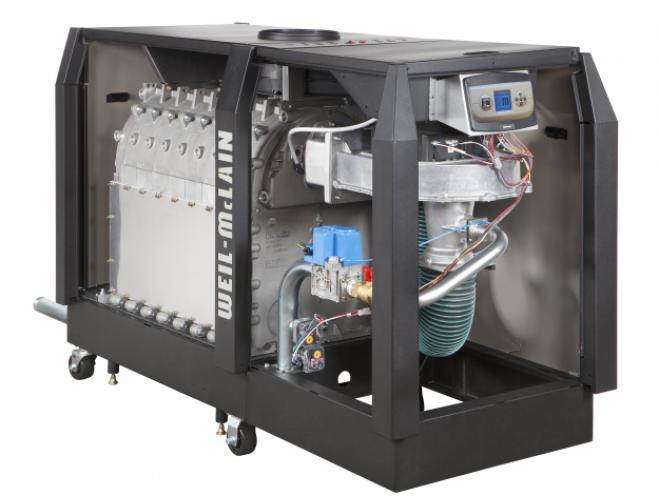

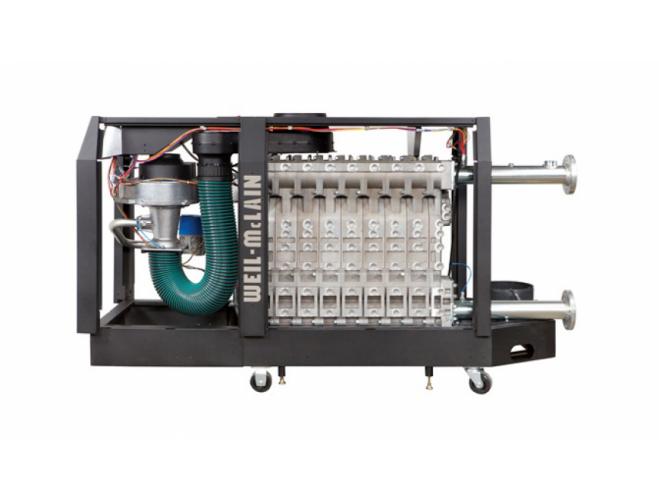

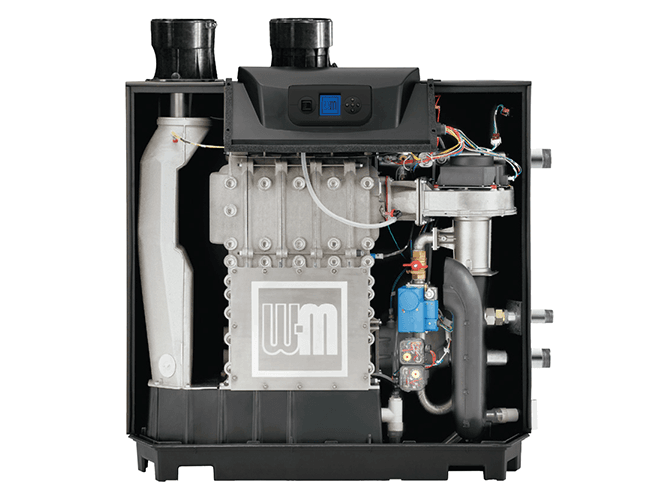

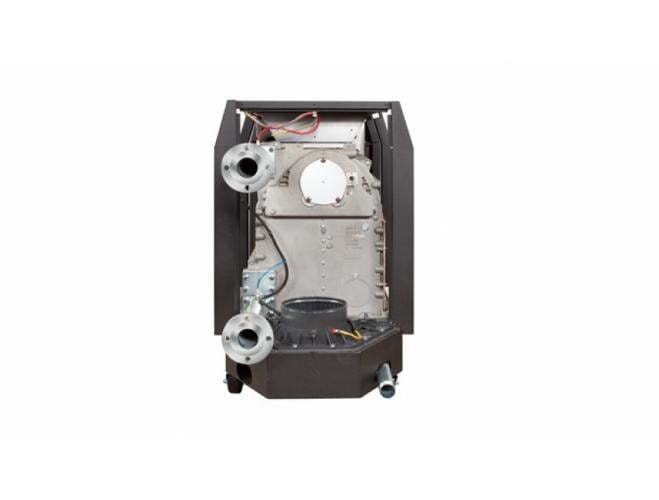

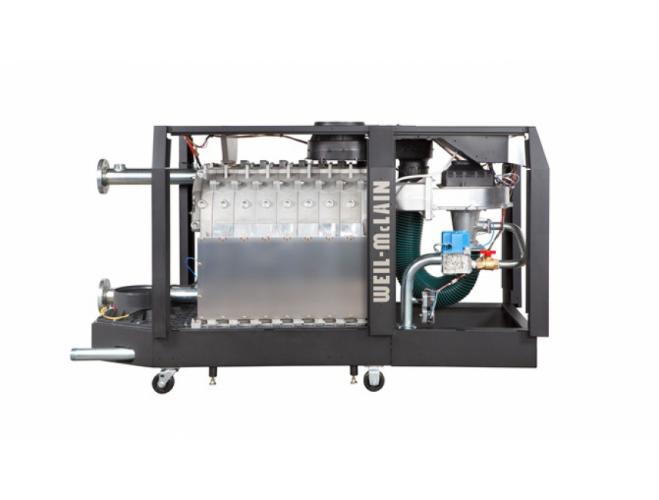

Horizontal Cast Aluminum Section Heat Exchanger

Used in 40% of global applications, aluminum design heat exchangers possess substantially higher heat transfer weights, resulting in smaller and lighter heating soluttions
Automotive and industrial equipment industries have standardized on the use of aluminum design in response to years of reliable and long service life

The Right Fit for Retrofit

Time-proven sectional design perfect for cast-iron section boiler upgrades to high efficiency
Wide, open waterways that are more forgiving of older boiler plant water systems

Ease of Installation & Service

No rigging required with integrated roller casters and shipping container ramp Boiler base capable of disassembly for tighter boiler room access application
Field-adjusable boiler front or side mount controller

Boiler Room & System Compatability

“Door-fit” design with left and righ hand orientation to maximize boiler room floor space
Comprehensive CAT II / CAT IV venting certications
Variable/primary and primary/secondarycompatible
Low pressure drops and minimum water flow rates
Boiler cascade redundancy for optimized boiler
Plant operation and reduced down times
Building Automation System integration via
Modbus to BACnet and Lonworks

Reliable, Long-Life Peace-of-Mind Operation

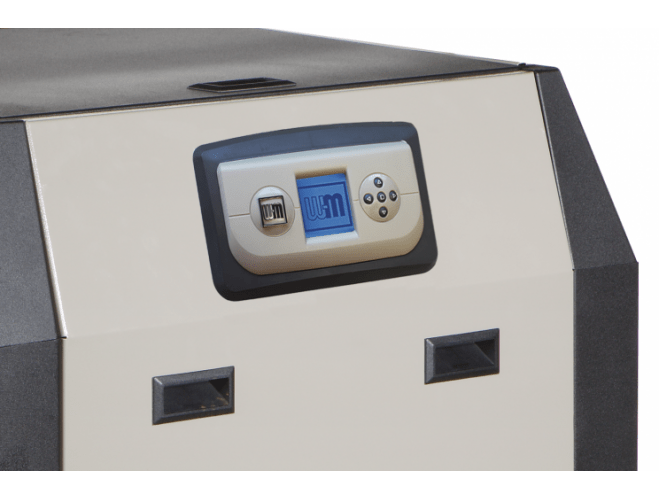

Proven Unity^TMController with thousands of boiler applications across the Evergreen, SlimFit and SVF product families (110-3000 MB)
Composite condensate tray
Non-prorated 10-year heat exchanger warranty
2-year package warranty

Model	Input Maximum (MBH)	Input Minimum (MBH)	Gross Output (MBH)	Net (MBH)	Vent Material	Vent/Air Diameter	Vent/Air Length	Gas Connection Size	Min/Max Gas Pressure (Inches W.C.)	Supply / Return Water Connections
SF550	550	1110	516	449	PVC, CPVC, PP, ABS, AL29-4C	6″	100′	2″ NPT Male	3″ – 14″	2″ ASME Class 150
SF750	750	150	702	1610	PVC, CPVC, PP, AL29-4C	6″ or 8″	30′, 100′	1 and 1/4″ NPT Male	3.5″ – 14″	2″ ASME Class 150
SF1000	1,000	167	958	1833	PVC, CPVC, PP, AL29-4C	6″ or 8″	100’ or 150′	2″ NPT Male	3″ – 14″	3″ ASME Class 150
SF1500	1500	250	1437	1250	PVC, CPVC, PP, ABS, AL29-4C	8″	100′	2″ NPT Male	3″ – 14″	3″ ASME Class 150
SF2000	2000	333	1906	1657	PVC, CPVC, PP, ABS, AL29-4C	8″	100′	2″ NPT Male	3″ – 14″	3″ ASME Class 150
