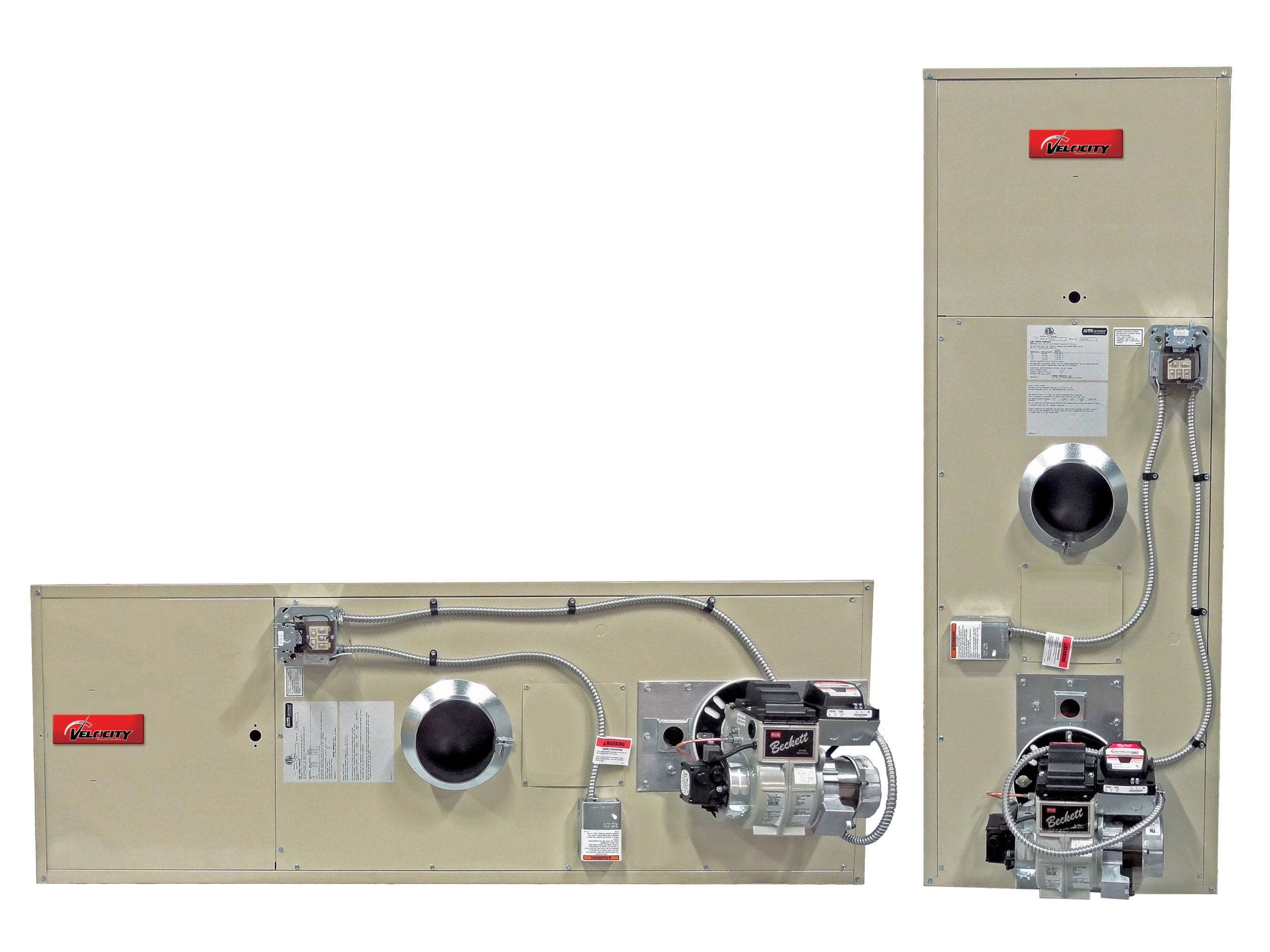

Horizontal/Counterflow Furnaces (VCHC68-96CBP)

The VCHC68-96CBP is a multi-position compact design furnace, supporting the following configurations: horizontal left or right and downflow.

This style furnace can be mounted horizontally where height restrictions are paramount. For instance, in a basement crawl space or attic.  Most furnaces draw cold air in at the bottom and warm air is released out the top. In certain situations, this is not practical and a counterflow or (“downflow”) furnace is needed. In a counterflow furnace, cold air is drawn in from the top and warm air is released out the bottom.

Standard features of our Oil Furnaces include a heavy-gauge drum-style heat exchanger and ceramic fiber combustion chamber, which serves to greatly reduce the combustion noise associated with expansion and contraction. This design heats up quickly, re-radiates heat back into the fire providing more complete combustion and cools down quickly after the burner is called to stop.

Built with a heavy duty 22-gauge powder coated cabinet for a durable, tough finish that will ensure long life and a quality appearance. The full cabinet foil-faced high density fiberglass insulation reduces heat loss and sound levels.

Beckett AFG oil burners are respected in the industry and the top choice for quality and reliability. All the components utilize the latest technology and are readily available.

Our Oil Furnaces are standard equipped with a multi-speed direct drive blower motor. The entire blower assembly can be removed for cleaning.

We are so confident in the quality of our Oil Furnaces that we stand behind our products with our Limited Lifetime Warranty on the heat exchanger and 5-year Parts Warranty. See warranty for details.
