DLCLRA

Description

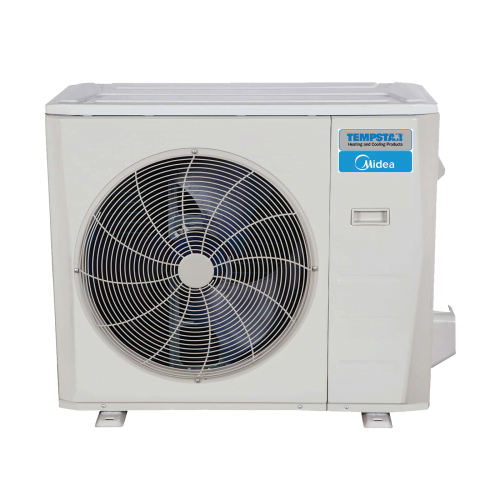

This light commercial ductless heat pump is a powerhouse unit with up to 17.4 SEER cooling and 10.0 EER heating efficiency. Features like Refrigerant Leakage Protection and Condenser High-Temperature Protection make this unit smart as well as efficient.

Features & Benefits

• Inverter Compressor
• Up to 17.4 SEER cooling efficiency
• Up to 10.0 EER heating efficiency
• Available in 208/230V
• Sizes: 36 / 48 / 58
• Built-in basepan heater
• Condenser high-temperature protection
• Refrigerant leakage detection
• Quiet outdoor operation, as low as 62.5 dB(A)¹
• Anti-corrosive fin coating
• 10-Year Parts Limited Warranty²

Specifications

• Up to 17.4 SEER
• Up to 10.0 EER
• Up to 10.5 HSPF
• Outdoor sound: as low as 62.5 decibels¹
• Cooling operating range -13° ~ 122° F (-25° ~ 50° C)
• Heating operating range -22°~86° F (-30°~30° C)
• Piping length 213 ft. (65 m)
• Inverter Compressor
• 3.0 – 5.0 Ton
• 208/230V
• Heavy-gauge, galvanized steel construction
• Primed and coated with a 100% coverage, baked-enamel finish in white

Efficiencies

• Up to 17.4 SEER
• Up to 10.0 EER
• Up to 10.5 HSPF

Efficiency   Up to 17.4 SEER

Heating Efficiency   Up to 10.5 HSPF
